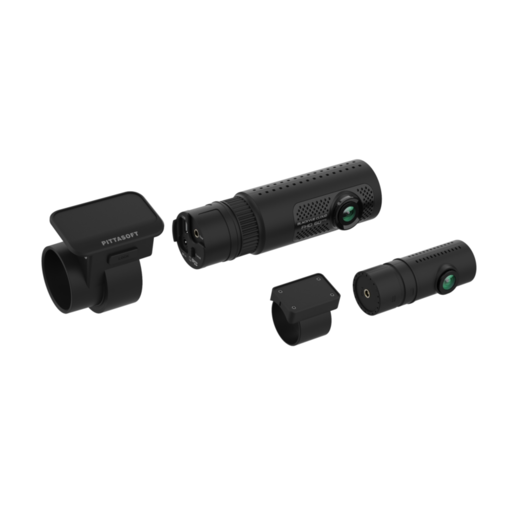

BlackVue DR770X 2-CH Full HD Dash Cam with GPS

BlackVue DR770X 2-CH Full HD Dash Cam with GPS

Regular price $699.00 AUD
Regular price Sale price $699.00 AUD
Sale Sold out
Shipping calculated at checkout.

Product Details:


Dual Full HD Cameras:

  • Both front and rear cameras feature Sony STARVIS™ CMOS sensors for excellent image quality in various lighting conditions. The front camera records at 1080p 60fps, and the rear camera at 1080p 30fps.

Built-in GPS and Wi-Fi:

  • The dash cam includes built-in GPS for tracking vehicle location and speed, and Wi-Fi for easy connectivity to your smartphone via the BlackVue app.

Cloud Connectivity:

  • With BlackVue Cloud, you can remotely view live footage, receive impact notifications, and backup videos. This feature requires a Wi-Fi hotspot or the optional LTE module for 4G connectivity.

Parking Mode:

  • The camera automatically switches to Parking Mode when the vehicle is turned off, recording events triggered by motion or impact. It includes a built-in voltage monitor to protect your vehicle's battery. For extended recording, additional power options are available.

Storage and Management:

  • The DR770X-2CH-64 supports microSD cards up to 256GB. It features adaptive format-free file management for improved stability and reduced need for manual formatting.

Technical Specifications:

  • Viewing Angles: 139° diagonal, 116° horizontal, 61° vertical for both front and rear cameras.
  • Recording Modes: Normal, Event (impact detection), Manual, and Parking Mode recording with motion and impact detection.
  • Build and Durability: Uses a super capacitor for power, which is more durable in extreme temperatures compared to traditional batteries.

The DR770X-2CH-64 combines high-quality video recording with advanced connectivity and surveillance features, making it a robust solution for vehicle security and monitoring.

Part Number : DR770X-2CH-64

Specifications:


Channel 2CH
Highlights Full HD (Front + Rear), Cloud, Wi-Fi, GPS, Dual Sony Sensors, External LTE Module
Product Dimensions Front:�Black / Width 118.5mm x Height 36mm / 104g
Rear:�Black / Width 67.4mm x Height 25mm / 25g
Rear Camera Connection Coaxial cable
Memory Support microSD card up to 256GB
Recording Modes Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected).
Note: When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
Parking Mode YES (hardwiring cable included)
Parking Mode Event Voice Notifications YES
Imaging Sensor Front:�Sony STARVIS CMOS Sensor (Approx. 2.1 M Pixel)
Rear:�Sony STARVIS CMOS Sensor (Approx. 2.1 M Pixel)
Viewing Angle Front:�Diagonal 139 deg, Horizontal 116 deg, Vertical 61 deg
Rear:�Diagonal 139 deg, Horizontal 116 deg, Vertical 61 deg
Resolution Frame Rate Front:�Full HD (1920 x 1080) @ 60 fps
Rear:�Full HD (1920 x 1080) @ 30 fps
Note: Frame rate may vary during Wi-Fi streaming.
Video Codec H.264 (AVC)
Image Quality and Bitrate Front/Rear Highest (Extreme): 25+10 Mbps
Highest: 12+10 Mbps
High: 10+8 Mbps
Normal: 8+6 Mbps
Format Free YES (Adaptive)
Event File Overwrite Protection YES (up to 50)
SD Card Failure Alert YES
Scheduled Reboot YES
Video File Extension MP4
Wi-Fi Built-in (802.11 b.g.n)
Cloud Compatible YES
GPS Built-in (Dual Band : GPS, GLONASS)
Microphone Built-in
Speaker Built-in
Impact Sensor 3-Axis Acceleration Sensor
LED Indicators Front:�Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED
Rear:�Rear Security LED
Button Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card.
Touch Sensor:�Pressing the touch sensor triggers manual recording depending on the firmware settings.
Operation Temperature -20 deg C ? 80 deg C (-4 deg F ? 176 deg F)
Storage Temperature -20 deg C ? 80 deg C (-4 deg F ? 176 deg F )
High Temp Cut Off Approx. 80 deg C (176 deg F)
Backup Battery Built-in supercapacitor
Input Power DC 12V-24V (DC Plug (Outer Diameter 3.5 x Inner Diameter 1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
Power Consumption Hour Normal Mode (GPS On/2CH): Avg. 380mA / 12V
Parking Mode (GPS Off/2CH): Avg. 300mA / 12V
Note: Actual power consumption may vary depending on use conditions and environment.
Certifications Front:�FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC
Rear:�FCC, ISED, CE, UKCA, RCM, RoHS, WEEE, KC
Software BlackVue Viewer
Windows 7 or higher, Mac Sierra OS X (10.12) or higher
BlackVue Web Viewer
Chrome 71 or higher, Safari 13.0 or higher
Application BlackVue Application
Android 8.0 or higher, iOS 13.0 or higher
Others Adaptive Format-Free File Management System
Bluetooth Built-in (V2.1+EDR/4.2)
LTE External (optional)
